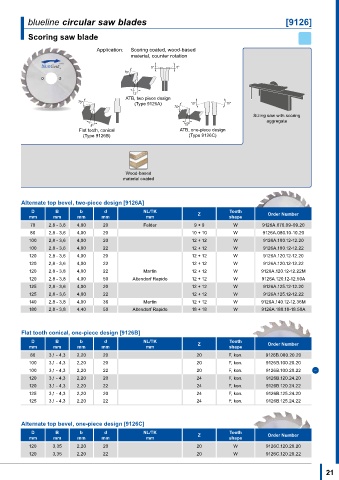

Page 21 - blueline Catalogue 2022+

blueline circular saw blades [9126]

Scoring saw blade

Application: Scoring coated, wood-based
material, counter rotation
5° 5°
15°

12°
ATB, two piece design
(Type 9126A) 10° 10°
15°
15°
Sizing saw with scoring
aggregate
8° 15°
Flat tooth, conical ATB, one-piece design
(Type 9126B) (Type 9126C)

Wood-based
material coated

Alternate top bevel, two-piece design [9126A]
D B b d NL/TK Tooth
mm mm mm mm mm Z shape Order Number
70 2,8 - 3,6 4,00 20 Felder 9 + 9 W 9126A.070.09-09.20
80 2,8 - 3,6 4,00 20 10 + 10 W 9126A.080.10-10.20
100 2,8 - 3,6 4,00 20 12 + 12 W 9126A.100.12-12.20
100 2,8 - 3,6 4,00 22 12 + 12 W 9126A.100.12-12.22
120 2,8 - 3,6 4,00 20 12 + 12 W 9126A.120.12-12.20
120 2,8 - 3,6 4,00 22 12 + 12 W 9126A.120.12-12.22
120 2,8 - 3,8 4,00 22 Martin 12 + 12 W 9126A.120.12-12.22M
120 2,8 - 3,8 4,00 50 Altendorf Rapido 12 + 12 W 9126A.120.12-12.50A
125 2,8 - 3,6 4,00 20 12 + 12 W 9126A.125.12-12.20
125 2,8 - 3,6 4,00 22 12 + 12 W 9126A.125.12-12.22
140 2,8 - 3,8 4,00 36 Martin 12 + 12 W 9126A.140.12-12.36M
180 2,8 - 3,8 4,40 50 Altendorf Rapido 18 + 18 W 9126A.180.18-18.50A

Flat tooth conical, one-piece design [9126B]
D B b d NL/TK Tooth
mm mm mm mm mm Z shape Order Number
80 3,1 - 4,3 2,20 20 20 F, kon. 9126B.080.20.20
100 3,1 - 4,3 2,20 20 20 F, kon. 9126B.100.20.20
100 3,1 - 4,3 2,20 22 20 F, kon. 9126B.100.20.22 –
120 3,1 - 4,3 2,20 20 24 F, kon. 9126B.120.24.20
120 3,1 - 4,3 2,20 22 24 F, kon. 9126B.120.24.22
125 3,1 - 4,3 2,20 20 24 F, kon. 9126B.125.24.20
125 3,1 - 4,3 2,20 22 24 F, kon. 9126B.125.24.22

Alternate top bevel, one-piece design [9126C]
D B b d NL/TK Z Tooth Order Number
mm mm mm mm mm shape
120 3,35 2,20 20 20 W 9126C.120.20.20
120 3,35 2,20 22 20 W 9126C.120.20.22
