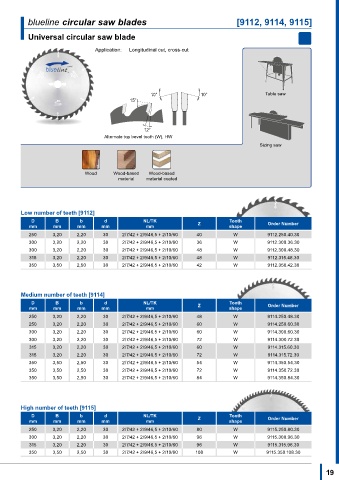

Page 19 - blueline Catalogue 2022+

blueline circular saw blades [9112, 9114, 9115]

Universal circular saw blade

Application: Longitudinal cut, cross-cut

10°
10° 10° 10° Table saw
15° 15°

12° 12°
Alternate top bevel tooth (W), HW
Sizing saw

Wood Wood-based Wood-based
material material coated

Low number of teeth [9112]
D B b d NL/TK Z Tooth Order Number
mm mm mm mm mm shape
250 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 40 W 9112.250.40.30
300 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 36 W 9112.300.36.30
300 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 48 W 9112.300.48.30
315 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 48 W 9112.315.48.30
350 3,50 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 42 W 9112.350.42.30

Medium number of teeth [9114]
D B b d NL/TK Tooth
mm mm mm mm mm Z shape Order Number
250 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 48 W 9114.250.48.30
250 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 60 W 9114.250.60.30
300 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 60 W 9114.300.60.30
300 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 72 W 9114.300.72.30
315 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 60 W 9114.315.60.30
315 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 72 W 9114.315.72.30
350 3,50 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 54 W 9114.350.54.30
350 3,50 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 72 W 9114.350.72.30
350 3,50 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 84 W 9114.350.84.30

High number of teeth [9115]
D B b d NL/TK Tooth
mm mm mm mm mm Z shape Order Number
250 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 80 W 9115.250.80.30
300 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 96 W 9115.300.96.30
315 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 96 W 9115.315.96.30
350 3,50 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 108 W 9115.350.108.30

19
