P. 19
0042

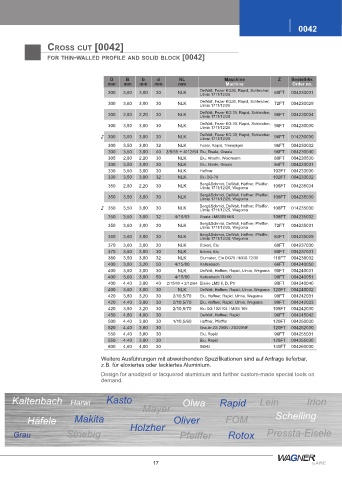

Cross CUt [0042]
for thIn-Walled profIle and solId bloCk [0042]
D B b d Nl Maschine Z Bestell-Nr.
mm mm mm mm mm Machine order no.
300 3,60 3,00 30 NLK DeWalt, Fezer KG30, Rapid, Schleicher, 60FT 004230031
Ulmia 1711/12/25
300 3,60 3,00 30 NLK DeWalt, Fezer KG30, Rapid, Schleicher, 72FT 004230029
Ulmia 1711/12/25
300 2,80 2,20 30 NLK DeWalt, Fezer KG 30, Rapid, Schleicher, 96FT 004230034
Ulmia 1711/12/25
300 3,50 3,00 30 NLK DeWalt, Fezer KG 30, Rapid, Schleicher, 96FT 004230030
Ulmia 1711/12/25
♪ 300 3,50 3,00 30 NLK DeWalt, Fezer KG 30, Rapid, Schleicher, 96FT 014230030
Ulmia 1711/12/25
300 3,50 3,00 32 NLK Fezer, Rapid, Trennjäger 96FT 004230032
300 3,50 3,00 40 2/9/55 + 4/12/64 Elu, Eisele, Graule 96FT 004230040
305 2,80 2,20 30 NLK Elu, Hitachi, Weidmann 80FT 004230530
330 3,50 3,00 30 NLK Elu, Eisele, Graule 84FT 004233031
aPPlication: Sizing and cross cut for machines with minimum lubrication in 330 3,50 3,00 30 NLK Haffner 102FT 004233030
profiled and solid materials 330 3,50 3,00 32 NLK Elu DG-79 102FT 004233032
material: Non-ferrous metal, plastic 350 2,80 2,20 30 NLK Berg&Schmid, DeWalt, Haffner, Pfeiffer, 108FT 004235034
Ulmia 1711/12/25, Wegoma
machine: Mitre and double mitre saw, CNC machining center, automatic Berg&Schmid, DeWalt, Haffner, Pfeiffer,
cross-cut saw, robot processing, portable circular saws 350 3,50 3,00 30 NLK Ulmia 1711/12/25, Wegoma 108FT 004235030
Design: Rigid design, noise reduced, improved HW quality; very quiet ♪ 350 3,50 3,00 30 NLK Berg&Schmid, DeWalt, Haffner, Pfeiffer, 108FT 014235030
Ulmia 1711/12/25, Wegoma
and vibration-free cutting results by optimization of the 350 3,50 3,00 32 4/10/63 108FT 004235032
blade body design; from dia 300 mm also with riveted and Eisele LMS350 M/S
noise-reducing expansion slots 350 3,60 3,00 30 NLK Berg&Schmid, DeWalt, Haffner, Pfeiffer, 72FT 004235031
Ulmia 1711/12/25, Wegoma
♪=Soundstar Design: noise reduced Berg&Schmid, DeWalt, Haffner, Pfeiffer,
tooth: Triple-chip flat tooth (FT), negative hook angle, HW 350 3,60 3,00 30 NLK Ulmia 1711/12/25, Wegoma 84FT 004235029
FeeD: Mainly manual feed 370 3,60 3,00 30 NLK Eckert, Elu 60FT 004237030
370 3,60 3,00 30 NLK Eckert, Elu 80FT 004237031
380 3,50 3,00 32 NLK Elumatec, Elu DG79 / MGS 72/30 110FT 004238032
400 3,80 3,20 50 4/15/80 Kaltenbach 66FT 004240050
400 3,60 3,00 30 NLK DeWalt, Haffner, Rapid, Ulmia, Wegoma 90FT 004240031
400 3,60 3,00 50 4/15/80 Kaltenbach TL400 90FT 004240051
400 4,40 3,80 40 2/15/80 + 2/12/64 Eisele LMS II, D, PV 90FT 004240040
400 3,60 3,00 30 NLK DeWalt, Haffner, Rapid, Ulmia, Wegoma 120FT 004240032
420 3,80 3,20 30 2/10,5/70 Elu, Haffner, Rapid, Ulmia, Wegoma 90FT 004242031
420 4,40 3,80 30 2/10,5/70 Elu, Haffner, Rapid, Ulmia, Wegoma 90FT 004242033
420 3,80 3,20 30 2/10,5/70 Elu DG 102/104 / MGS 105 108FT 004242030
450 4,80 4,00 30 DeWalt, Haffner, Rapid 96FT 004245042
500 4,40 3,80 30 1/10,5/60 Haffner, Pfeiffer 120FT 004250030
520 4,40 3,80 30 Graule ZS 200N / ZS200NF 120FT 004252030
550 4,40 3,80 30 Elu, Rapid 96FT 004255031
550 4,40 3,80 30 Elu, Rapid 128FT 004255030
600 4,60 4,00 30 Stürtz 140FT 004260030
Weitere Ausführungen mit abweichenden Spezifikationen sind auf Anfrage lieferbar,
z.B. für eloxiertes oder lackiertes Aluminium.
Design for anodized or lacquered aluminium and further custom-made special tools on
demand.
