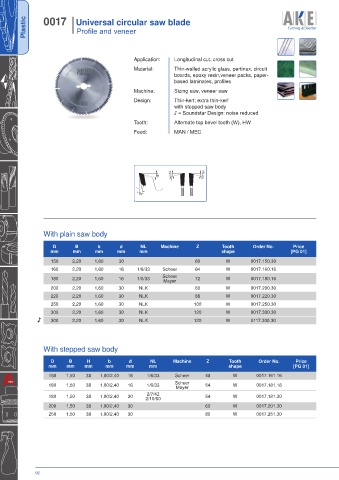

Plastic 0017 I Universal circular saw blade

I Profile and veneer

Application: Longitudinal cut, cross cut
Material: Thin-walled acrylic glass, pertinax, circuit
boards, epoxy resin,veneer packs, paper-
based laminates, profiles
Machine: Sizing saw, veneer saw
Design: Thin-kerf; extra thin-kerf
with stepped saw body
♪ = Soundstar Design: noise reduced
Tooth: Alternate top bevel tooth (W), HW
Feed: MAN / MEC

10°/15°
15° 10°/15°

10°

With plain saw body

D B b d NL Machine Z Tooth Order No. Price
mm mm mm mm mm shape [PG 01]

150 2,20 1,60 30 60 W 0017.150.30
160 2,20 1,60 16 1/6/33 Scheer 64 W 0017.160.16
180 2,20 1,60 16 1/6/33 Scheer 72 W 0017.180.16
Mayer
200 2,20 1,60 30 NLK 80 W 0017.200.30
220 2,20 1,60 30 NLK 88 W 0017.220.30
250 2,20 1,60 30 NLK 100 W 0017.250.30
300 2,20 1,60 30 NLK 120 W 0017.300.30
♪ 300 2,20 1,60 30 NLK 120 W 0117.300.30

With stepped saw body

D B H b d NL Machine Z Tooth Order No. Price
mm mm mm mm mm mm shape [PG 01]
160 1,50 38 1,00/2,40 16 1/6/33 Scheer 48 W 0017.161.16
180 1,50 38 1,00/2,40 16 1/6/33 Scheer 54 W 0017.181.16
Mayer
2/7/42
180 1,50 38 1,00/2,40 30 2/10/60 54 W 0017.181.30
200 1,50 38 1,00/2,40 30 60 W 0017.201.30
250 1,50 38 1,00/2,40 30 80 W 0017.251.30

92
