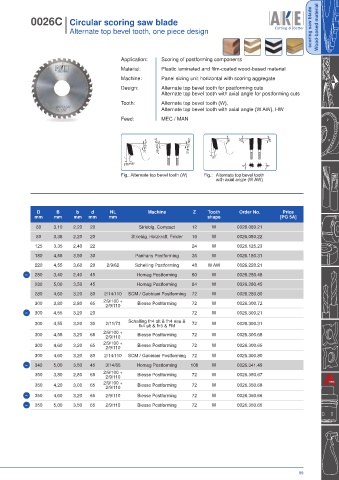

Page 93 - Catalogue_2025+

scoring saw blade Wood-based material
0026C I Circular scoring saw blade
I Alternate top bevel tooth, one piece design

Application: Scoring of postforming components
Material: Plastic laminated and film-coated wood-based material
Machine: Panel sizing unit horizontal with scoring aggregate
Design: Alternate top bevel tooth for postforming cuts
Alternate top bevel tooth with axial angle for postforming cuts
Tooth: Alternate top bevel tooth (W),
Alternate top bevel tooth with axial angle (W AW), HW
Feed: MEC / MAN

12°/15°/17° 5°/8°/10°/30° 5°/8°/10°/30° 15° 20° 20°

15°

5°/8°/15°
5° 5°
Fig.: Alternate top bevel tooth (W) Fig.: Alternate top bevel tooth
with axial angle (W AW)

D B b d NL Machine Z Tooth Order No. Price
mm mm mm mm mm shape [PG 5A]
80 3,10 2,20 20 Striebig, Compact 12 W 0026.080.21
80 3,38 2,20 20 Striebig, Holzkraft, Felder 16 W 0026.080.22
125 3,35 2,40 22 24 W 0026.125.23
180 4,55 3,50 30 Panhans Postforming 36 W 0026.180.31

220 4,55 3,60 20 2/9/62 Schelling Postforming 48 W AW 0026.220.21
– 280 3,40 2,40 45 Homag Postforming 60 W 0026.280.48
280 5,00 3,50 45 Homag Postforming 84 W 0026.280.45
280 4,60 3,20 80 2/14/110 SCM / Gabbiani Postforming 72 W 0026.280.80
300 3,80 2,80 65 2/9/100 + Biesse Postforming 72 W 0026.300.72
2/9/110
– 300 4,55 3,20 20 72 W 0026.300.21
300 4,55 3,20 30 2/11/73 Schelling fh4 alt & fh4 neu & 72 W 0026.300.31
fk4 alt & fh5 & FM
300 4,55 3,20 65 2/9/100 + Biesse Postforming 72 W 0026.300.68
2/9/110
300 4,60 3,20 65 2/9/100 + Biesse Postforming 72 W 0026.300.65
2/9/110
300 4,60 3,20 80 2/14/110 SCM / Gabbiani Postforming 72 W 0026.300.80
– 340 5,00 3,50 45 3/14/65 Homag Postforming 108 W 0026.341.49

350 3,80 2,80 65 2/9/100 + Biesse Postforming 72 W 0026.350.67
2/9/110
350 4,20 3,00 65 2/9/100 + Biesse Postforming 72 W 0026.350.68
2/9/110
– 350 4,60 3,20 65 2/9/110 Biesse Postforming 72 W 0026.350.66
– 350 5,00 3,50 65 2/9/110 Biesse Postforming 72 W 0026.350.65

89
