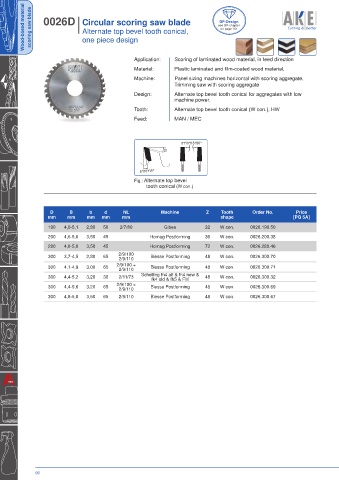

Wood-based material scoring saw blade 0026D I Circular scoring saw blade see DP-chapter

DP-Design

I Alternate top bevel tooth conical,
on page 161
one piece design

Application: Scoring of laminated wood material, in feed direction
Material: Plastic laminated and film-coated wood material,
Machine: Panel sizing machines horizontal with scoring aggregate,
Trimming saw with scoring aggregate
Design: Alternate top bevel tooth conical for aggregates with low
machine power.
Tooth: Alternate top bevel tooth conical (W con.), HW
Feed: MAN / MEC

5°/10°/15°/30°
15°

8°/10°/15°
Fig.: Alternate top bevel
tooth conical (W con.)

D B b d NL Machine Z Tooth Order No. Price
mm mm mm mm mm shape [PG 5A]
190 4,0-5,1 2,80 50 2/7/80 Giben 32 W con. 0026.190.50
200 4,6-5,6 3,50 45 Homag Postforming 36 W con. 0026.200.38
280 4,8-5,8 3,50 45 Homag Postforming 72 W con. 0026.280.46

300 3,7-4,5 2,80 65 2/9/100 Biesse Postforming 48 W con. 0026.300.70
2/9/110
300 4,1-4,9 3,00 65 2/9/100 + Biesse Postforming 48 W con. 0026.300.71
2/9/110
300 4,4-5,2 3,20 30 2/11/73 Schelling fh4 alt & fh4 new & 48 W con. 0026.300.32
fk4 old & fh5 & FM
300 4,4-5,6 3,20 65 2/9/100 + Biesse Postforming 48 W con. 0026.300.69
2/9/110
300 4,8-5,8 3,50 65 2/9/110 Biesse Postforming 48 W con. 0026.300.67
