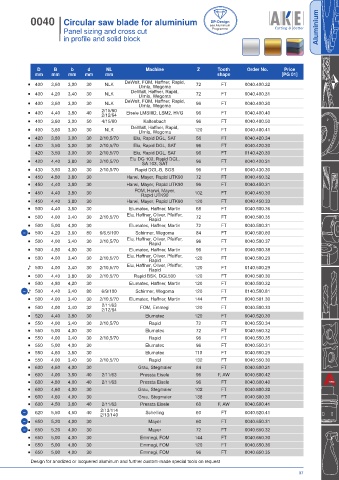

0040 I Circular saw blade for aluminium see Aluminium
DP-Design
I Panel sizing and cross cut Programme Aluminium
in profile and solid block

D B b d NL Machine Z Tooth Order No. Price
mm mm mm mm mm shape [PG 01]
• 400 3,60 3,00 30 NLK DeWalt, FOM, Haffner, Rapid, 72 FT 0040.400.32
Ulmia, Wegoma
• 400 4,20 3,40 30 NLK DeWalt, Haffner, Rapid, 72 FT 0040.400.31
Ulmia, Wegoma
• 400 3,60 3,00 30 NLK DeWalt, FOM, Haffner, Rapid, 96 FT 0040.400.30
Ulmia, Wegoma
• 400 4,40 3,80 40 2/15/80 Eisele LMSIIID, LSM2, HVG 96 FT 0040.400.40
2/12/64
• 400 3,60 3,00 50 4/15/80 Kaltenbach 96 FT 0040.400.50
• 400 3,60 3,00 30 NLK DeWalt, Haffner, Rapid, 120 FT 0040.400.41
Ulmia, Wegoma
• 420 3,80 3,00 30 2/10,5/70 Elu, Rapid DGL, SAT 56 FT 0040.420.34
• 420 3,50 3,00 30 2/10,5/70 Elu, Rapid DGL, SAT 96 FT 0040.420.30
420 3,50 3,00 30 2/10,5/70 Elu, Rapid DGL, SAT 96 FT 0140.420.30
• 420 4,40 3,80 30 2/10,5/70 Elu DG 102, Rapid DGL, 96 FT 0040.420.31
SA 103, SAT
• 430 3,50 3,00 30 2/10,5/70 Rapid DGL-B, SGS 96 FT 0040.430.30
• 450 4,80 3,80 30 Harwi, Mayer, Rapid UTK90 72 FT 0040.450.32
• 450 4,40 3,80 30 Harwi, Mayer, Rapid UTK90 96 FT 0040.450.31
• 450 4,40 3,80 30 FOM, Harwi, Mayer, 102 FT 0040.450.30
Rapid UTK90
• 450 4,40 3,80 30 Harwi, Mayer, Rapid UTK90 120 FT 0040.450.33
• 500 4,40 3,60 30 Elumatec, Haffner, Martin 68 FT 0040.500.36
• 500 4,00 3,40 30 2/10,5/70 Elu, Haffner, Oliver, Pfeiffer, 72 FT 0040.500.35
Rapid
• 500 5,00 4,00 30 Elumatec, Haffner, Martin 72 FT 0040.500.31
– • 500 4,20 3,60 80 6/6,5/100 Schirmer, Wegoma 84 FT 0040.500.80
• 500 4,00 3,40 30 2/10,5/70 Elu, Haffner, Oliver, Pfeiffer, 96 FT 0040.500.37
Rapid
• 500 4,80 4,00 30 Elumatec, Haffner, Martin 96 FT 0040.500.38
• 500 4,00 3,40 30 2/10,5/70 Elu, Haffner, Oliver, Pfeiffer, 120 FT 0040.500.29
Rapid
♪ 500 4,00 3,40 30 2/10,5/70 Elu, Haffner, Oliver, Pfeiffer, 120 FT 0140.500.29
Rapid
• 500 4,40 3,80 30 2/10,5/70 Rapid BSK, DGL500 120 FT 0040.500.30
• 500 4,80 4,20 30 Elumatec, Haffner, Martin 120 FT 0040.500.32
– ♪ 500 4,40 3,40 80 6/9/100 Schirmer, Wegoma 120 FT 0140.500.81
• 500 4,00 3,40 30 2/10,5/70 Elumatec, Haffner, Martin 144 FT 0040.501.30
• 500 4,00 3,40 32 2/11/63 FOM, Emmegi 120 FT 0040.500.33
2/12/64
• 520 4,40 3,80 30 Elumatec 120 FT 0040.520.30
• 550 4,00 3,40 30 2/10,5/70 Rapid 72 FT 0040.550.34
• 550 5,00 4,00 30 Elumatec 72 FT 0040.550.32
• 550 4,00 3,40 30 2/10,5/70 Rapid 96 FT 0040.550.35
• 550 5,00 4,00 30 Elumatec 96 FT 0040.550.31
• 550 4,60 3,60 30 Elumatec 110 FT 0040.550.29
• 550 4,00 3,40 30 2/10,5/70 Rapid 132 FT 0040.550.30
• 600 4,60 4,00 30 Grau, Stegmaier 84 FT 0040.600.31
• 600 4,00 3,50 40 2/11/63 Pressta Eisele 96 F, AW 0040.600.42
• 600 4,80 4,00 40 2/11/63 Pressta Eisele 96 FT 0040.600.40
• 600 4,60 4,00 30 Grau, Stegmaier 102 FT 0040.600.32
• 600 4,60 4,00 30 Grau, Stegmaier 138 FT 0040.600.30
• 600 4,50 3,80 40 2/11/63 Pressta Eisele 60 F, AW 0040.600.41
2/13/114
– 620 5,50 4,50 40 2/13/140 Schelling 60 FT 0040.620.41
– • 650 5,20 4,00 30 Mayer 60 FT 0040.650.31
– • 650 5,20 4,00 30 Mayer 72 FT 0040.650.32
• 650 5,00 4,00 30 Emmegi, FOM 144 FT 0040.650.30
• 650 5,00 4,00 30 Emmegi, FOM 120 FT 0040.650.36
• 650 5,00 4,00 30 Emmegi, FOM 96 FT 0040.650.35
Design for anodized or lacquered aluminum and further custom-made special tools on request
