P. 347

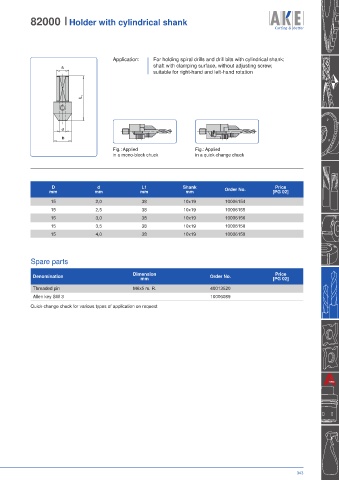

82000 I Holder with cylindrical shank
Application: For holding spiral drills and drill bits with cylindrical shank;
shaft with clamping surface, without adjusting screw;
S
suitable for right-hand and left-hand rotation
L 1
d
D
Fig.: Applied Fig.: Applied
in a mono-block chuck in a quick-change chuck
D d L1 Shank Price
mm mm mm mm Order No. [PG 02]
15 2,0 38 10x19 10006154
15 2,5 38 10x19 10006155
15 3,0 38 10x19 10006156
15 3,5 38 10x19 10006158
15 4,0 38 10x19 10006159
Spare parts
Price
Denomination Dimension Order No. [PG 02]
mm
Threaded pin M6x5 m. R. 40013520
Allen key SW 3 10006089
Quick-change chuck for various types of application on request
