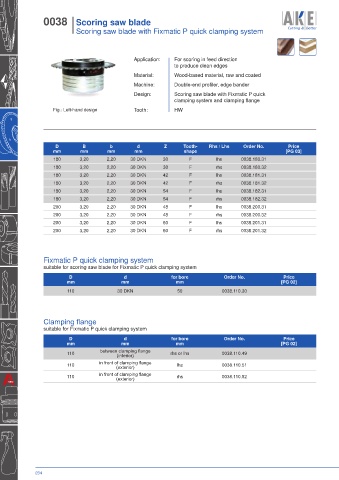

0038 I Scoring saw blade
I Scoring saw blade with Fixmatic P quick clamping system

Application: For scoring in feed direction
to produce clean edges
Material: Wood-based material, raw and coated
Machine: Double-end profiler, edge bander
Design: Scoring saw blade with Fixmatic P quick
clamping system and clamping flange
Fig.: Left-hand design Tooth: HW

D B b d Z Tooth- Rhs / Lhs Order No. Price
mm mm mm mm shape [PG 03]
180 3,20 2,20 30 DKN 30 F lhs 0038.180.31
180 3,20 2,20 30 DKN 30 F rhs 0038.180.32
180 3,20 2,20 30 DKN 42 F lhs 0038.181.31
180 3,20 2,20 30 DKN 42 F rhs 0038.181.32
180 3,20 2,20 30 DKN 54 F lhs 0038.182.31
180 3,20 2,20 30 DKN 54 F rhs 0038.182.32
200 3,20 2,20 30 DKN 48 F lhs 0038.200.31
200 3,20 2,20 30 DKN 48 F rhs 0038.200.32
200 3,20 2,20 30 DKN 60 F lhs 0038.201.31
200 3,20 2,20 30 DKN 60 F rhs 0038.201.32

Fixmatic P quick clamping system
suitable for scoring saw blade for Fixmatic P quick clamping system
D d for bore Order No. Price
mm mm mm [PG 02]
110 30 DKN 50 0038.110.30

Clamping flange
suitable for Fixmatic P quick clamping system

D d for bore Order No. Price
mm mm mm [PG 02]
110 between clamping flange rhs or lhs 0038.110.49
(interior)
110 in front of clamping flange lhs 0038.110.51
(exterior)
110 in front of clamping flange rhs 0038.110.52
(exterior)
