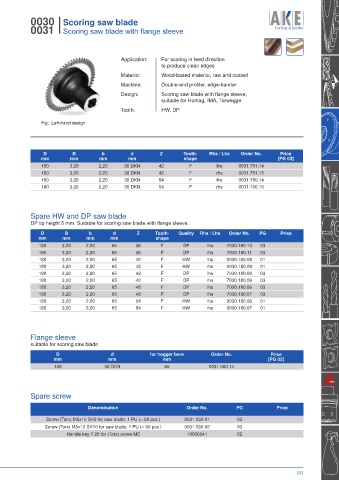

0030 I Scoring saw blade
0031 I Scoring saw blade with flange sleeve

Application: For scoring in feed direction
to produce clean edges
Material: Wood-based material, raw and coated
Machine: Double-end profiler, edge-bander
Design: Scoring saw blade with flange sleeve;
suitable for Homag, IMA, Torwegge
Tooth: HW, DP

Fig.: Left-hand design

D B b d Z Tooth- Rhs / Lhs Order No. Price
mm mm mm mm shape [PG 03]
180 3,20 2,20 30 DKN 42 F lhs 0031.751.14
180 3,20 2,20 30 DKN 42 F rhs 0031.751.15
180 3,20 2,20 30 DKN 54 F lhs 0031.750.14
180 3,20 2,20 30 DKN 54 F rhs 0031.750.15

Spare HW and DP saw blade
DP tip height 5 mm. Suitable for scoring saw blade with flange sleeve.
D B b d Z Tooth- Quality Rhs / Lhs Order No. PG Price
mm mm mm mm shape
180 3,20 2,20 65 36 F DP lhs 7030.180.10 03
180 3,20 2,20 65 36 F DP rhs 7030.180.11 03
180 3,20 2,20 65 42 F HW lhs 0030.180.08 01
180 3,20 2,20 65 42 F HW rhs 0030.180.09 01
180 3,20 2,20 65 42 F DP lhs 7030.180.08 03
180 3,20 2,20 65 42 F DP rhs 7030.180.09 03
180 3,20 2,20 65 48 F DP lhs 7030.180.06 03
180 3,20 2,20 65 48 F DP rhs 7030.180.07 03
180 3,20 2,20 65 54 F HW lhs 0030.180.06 01
180 3,20 2,20 65 54 F HW rhs 0030.180.07 01

Flange sleeve
suitable for scoring saw blade
D d for hogger bore Order No. Price
mm mm mm [PG 02]
108 30 DKN 65 0031.000.14

Spare screw

Denomination Order No. PG Price
Screw (Torx) M5x12 SK9 for saw blade; 1 PU (= 50 pcs.) 0031.050.01 03
Screw (Torx) M5x12 SK10 for saw blade; 1 PU (= 50 pcs.) 0031.050.02 03
Handle key T 20 for (Torx) screw M5 10006041 02
