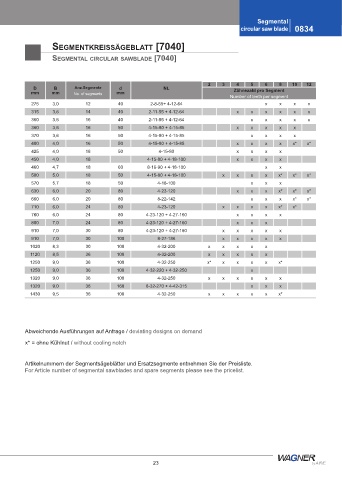

Segmental
circular saw blade 0834

segmentkreIssägeblatt [7040] segmentkreIssägeblatt [7040]

segmental CIrCUlar saWblade [7040] segmental CIrCUlar saWblade [7040]

2 3 4 5 6 8 10 12
D B anz.Segmente d Nl Zähnezahl pro Segment
mm mm No. of segments mm
Number of teeth per segment
275 3,0 12 40 2-8-55+ 4-12-64 x x x x
315 3,6 14 40 2-11-55 + 4-12-64 x x x x x x
360 3,6 16 40 2-11-55 + 4-12-64 x x x x x
360 3,6 16 50 4-15-80 + 4-15-85 x x x x x
applICatIon: In addition to HSS circular sawblades for metal, for larger 370 3,6 16 50 4-15-80 + 4-15-85 x x x x
workpieces on stationary and revolving automatic sawing machines 400 4,0 16 50 4-15-80 + 4-15-85 x x x x x* x*
desIgn: Body cousisting of alloyed tool steel with toothed and riveted 425 4,0 18 50 4-15-80 x x x x
segments of HSS-Dm05 1.3343
tooth: Roughing and finishing tooth 450 4,0 18 4-15-80 + 4-18-100 x x x x
460 4,7 18 60 8-16-90 + 4-18-100 x x
500 5,0 18 50 4-15-80 + 4-18-100 x x x x x* x* x*
570 5,7 18 50 4-18-100 x x x
630 6,0 20 80 4-23-120 x x x x* x* x*
660 6,0 20 80 8-22-142 x x x x* x*
710 6,0 24 80 4-23-120 x x x x x* x*
760 6,0 24 80 4-23-120 + 4-27-160 x x x x
800 7,0 24 80 4-23-120 + 4-27-160 x x x
910 7,0 30 80 4-23-120 + 4-27-160 x x x x x
910 7,0 30 100 8-27-186 x x x x x
1020 8,3 30 100 4-32-200 x x x x x
1120 8,5 36 100 4-32-200 x x x x x
1250 9,0 36 100 4-32-250 x* x x x x x*
1250 9,0 36 100 4-32-220 + 4-32-250 x
1320 9,0 36 100 4-32-250 x x x x x x
1320 9,0 36 160 8-32-270 + 4-42-315 x x x
1430 9,5 36 100 4-32-250 x x x x x x*

Abweichende Ausführungen auf Anfrage / deviating designs on demand

x* = ohne Kühlnut / without cooling notch

Artikelnummern der Segmentsägeblätter und Ersatzsegmente entnehmen Sie der Preisliste.
For Article number of segmental sawblades and spare segments please see the pricelist.
