scoring saw blade Wood-based material

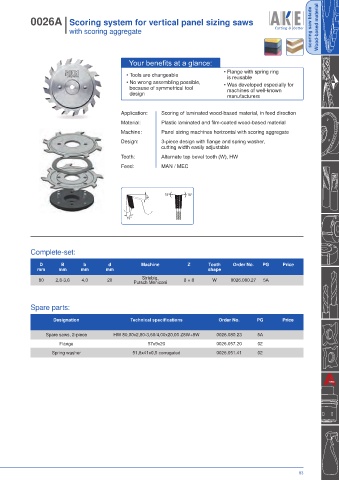

0026A I Scoring system for vertical panel sizing saws
I with scoring aggregate
Your benefits at a glance:
• Flange with spring ring
• Tools are changeable is reusable
• No wrong assembling possible, • Was developed especially for
because of symmetrical tool machines of well-known
design manufacturers
Application: Scoring of laminated wood-based material, in feed direction
Material: Plastic laminated and film-coated wood-based material
Machine: Panel sizing machines horizontal with scoring aggregate
Design: 3-piece design with flange and spring washer,
cutting width easily adjustable
Tooth: Alternate top bevel tooth (W), HW
Feed: MAN / MEC
15° 15°
15°
15°
Complete-set:
D B b d Machine Z Tooth Order No. PG Price
mm mm mm mm shape
Striebig,
80 2,8-3,6 4,0 20 Putsch Meniconi 8 + 8 W 0026.080.27 5A
Spare parts:
Designation Technical specifications Order No. PG Price
Spare saws, 2-piece HW 80,00x2,80-3,60/4,00x20,00 Z8W+8W 0026.080.23 5A
Flange 57x9x20 0026.057.20 02
Spring washer 51,8x41x0,5 corrugated 0026.051.41 02
