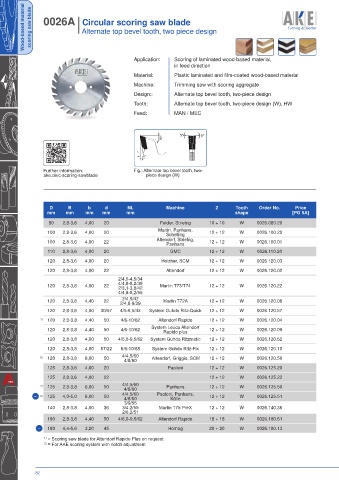

Wood-based material scoring saw blade 0026A I Circular scoring saw blade

I Alternate top bevel tooth, two piece design

Application: Scoring of laminated wood-based material,
in feed direction
Material: Plastic laminated and film-coated wood-based material
Machine: Trimming saw with scoring aggregate
Design:: Alternate top bevel tooth, two-piece design
Tooth: Alternate top bevel tooth, two-piece design (W), HW
Feed: MAN / MEC

5° 5°
15°

12°

Further information: Fig.: Alternate top bevel tooth, two-
ake.de/c-scoring-sawblade piece design (W)

D B b d NL Machine Z Tooth Order No. Price
mm mm mm mm mm shape [PG 5A]
80 2,8-3,6 4,00 20 Felder, Striebig 10 + 10 W 0026.080.20
100 2,8-3,6 4,00 20 Martin, Panhans, 12 + 12 W 0026.100.20
Schelling
100 2,8-3,6 4,00 22 Altendorf, Striebig, 12 + 12 W 0026.100.01
Panhans
110 2,8-3,6 4,00 20 GMC 12 + 12 W 0026.110.20
120 2,8-3,6 4,00 20 Holzher, SCM 12 + 12 W 0026.120.03

120 2,8-3,8 4,00 22 Altendorf 12 + 12 W 0026.120.02
2/4,0-4,5/34
120 2,8-3,8 4,00 22 4/4,8-8,2/39 Martin T73/T74 12 + 12 W 0026.120.22
2/3,1-3,8/42
4/4,8-8,2/55
2/4,5/42
120 2,8-3,8 4,40 22 2/4,8-9/39 Martin T72A 12 + 12 W 0026.120.06
120 2,8-3,6 4,00 30/57 4/5-8,5/42 System Guhdo Ritz-Quick 12 + 12 W 0026.120.57

1) 120 2,8-3,8 4,40 50 4/6-10/62 Altendorf Rapido 12 + 12 W 0026.120.04
120 2,8-3,8 4,40 50 4/6-10/62 System Leuco Altendorf 12 + 12 W 0026.120.09
Rapido plus
120 2,8-3,8 4,00 50 4/5,5-9,5/62 System Guhdo Ritzmatic 12 + 12 W 0026.120.52
120 2,8-3,8 4,00 57/22 6/6-10/68 System Guhdo Ritz-Fix 12 + 12 W 0026.120.10
2) 120 2,8-3,8 6,00 50 4/4,5/60 Altendorf, Griggio, SCM 12 + 12 W 0026.120.50
4/8/60
125 2,8-3,6 4,00 20 Paoloni 12 + 12 W 0026.125.20
125 2,8-3,6 4,00 22 12 + 12 W 0026.125.22
2) 125 2,8-3,8 6,00 50 4/4,5/60 Panhans 12 + 12 W 0026.125.50
4/8/60
– 2) 125 4,0-5,0 6,00 50 4/4,5/60 Paoloni, Panhans, 12 + 12 W 0026.125.51
Kölle
4/8/60
3/9/55
140 2,8-3,8 4,00 36 3/4,2/55 Martin T75 PreX 12 + 12 W 0026.140.36
2/6,2/51
180 2,8-3,8 4,40 50 4/6,0-9,5/62 Altendorf Rapido 18 + 18 W 0026.180.51
– 180 4,4-5,6 3,20 45 Homag 20 + 20 W 0026.180.13

1) = Scoring saw blade for Altendorf Rapido Plus on request
2) = For AKE scoring system with notch adjustment
