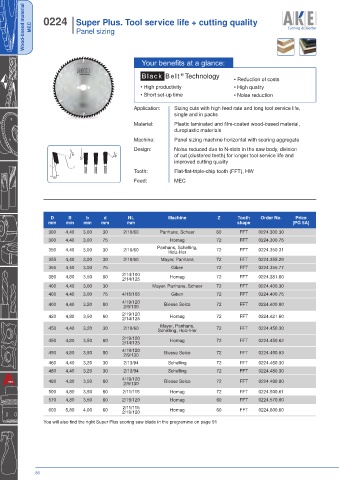

Wood-based material MEC 0224 I Super Plus. Tool service life + cutting quality

I Panel sizing

Your benefits at a glance:

Black Belt Technology • Reduction of costs
®
• High productivity • High quality
• Short set-up time • Noise reduction

Application: Sizing cuts with high feed rate and long tool service life,
single and in packs
Material: Plastic laminated and film-coated wood-based material,
duroplastic materials
Machine: Panel sizing machine horizontal with scoring aggregate
Design: Noise reduced due to N-slots in the saw body, division
18° 45° of cut (clustered teeth) for longer tool service life and
0,5
improved cutting quality
Tooth: Flat-flat-triple-chip tooth (FFT), HW
18°
Feed: MEC

D B b d NL Machine Z Tooth Order No. Price
mm mm mm mm mm shape [PG 5A]
300 4,40 3,00 30 2/10/60 Panhans, Scheer 60 FFT 0224.300.30
300 4,40 3,00 75 Homag 72 FFT 0224.300.75
350 4,40 3,00 30 2/10/60 Panhans, Schelling, 72 FFT 0224.350.31
Holz-Her
355 4,40 3,00 30 2/10/60 Mayer, Panhans 72 FFT 0224.355.29
355 4,40 3,00 75 Giben 72 FFT 0224.355.77
380 4,80 3,50 60 2/14/100 Homag 72 FFT 0224.381.60
2/14/125
400 4,40 3,00 30 Mayer, Panhans, Scheer 72 FFT 0224.400.30
400 4,40 3,00 75 4/15/105 Giben 72 FFT 0224.400.75
400 4,40 3,20 80 4/19/120 Biesse Selco 72 FFT 0224.400.80
2/9/130
420 4,80 3,50 60 2/19/120 Homag 72 FFT 0224.421.60
2/14/125
Mayer, Panhans,
450 4,40 3,20 30 2/10/60 Schelling, Holz-Her 72 FFT 0224.450.30
450 4,80 3,50 60 2/19/120 Homag 72 FFT 0224.450.62
2/14/125
450 4,80 3,50 80 4/19/120 Biesse Selco 72 FFT 0224.450.83
2/9/130
460 4,40 3,20 30 2/13/94 Schelling 72 FFT 0224.460.30
480 4,40 3,20 30 2/13/94 Schelling 72 FFT 0224.480.30
480 4,80 3,50 80 4/19/120 Biesse Selco 72 FFT 0224.480.80
2/9/130
500 4,80 3,50 60 2/11/115 Homag 72 FFT 0224.500.61
570 4,80 3,50 60 2/19/120 Homag 60 FFT 0224.570.60
600 5,80 4,00 60 2/11/115 Homag 60 FFT 0224.600.60
2/19/120
You will also find the right Super Plus scoring saw blade in the programme on page 91
