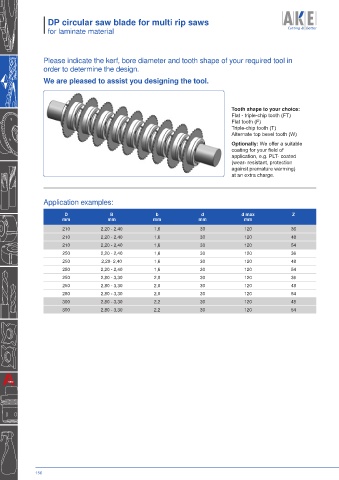

I DP circular saw blade for multi rip saws
I for laminate material

Please indicate the kerf, bore diameter and tooth shape of your required tool in
order to determine the design.

We are pleased to assist you designing the tool.

Tooth shape to your choice:
Flat - triple-chip tooth (FT)
Flat tooth (F)
Triple-chip tooth (T)
Alternate top bevel tooth (W)
Optionally: We offer a suitable
coating for your field of
application, e.g. PLT- coated
(wear- resistant, protection
against premature warming)
at an extra charge.

Application examples:

D B b d d max Z
mm mm mm mm mm

210 2,20 - 2,40 1,6 30 120 36
210 2,20 - 2,40 1,6 30 120 48
210 2,20 - 2,40 1,6 30 120 54
250 2,20 - 2,40 1,6 30 120 36
250 2,20- 2,40 1,6 30 120 48
250 2,20 - 2,40 1,6 30 120 54
250 2,80 - 3,30 2,0 30 120 36
250 2,80 - 3,30 2,0 30 120 48
250 2,80 - 3,30 2,0 30 120 54
300 2,80 - 3,30 2,2 30 120 48
300 2,80 - 3,30 2,2 30 120 54
