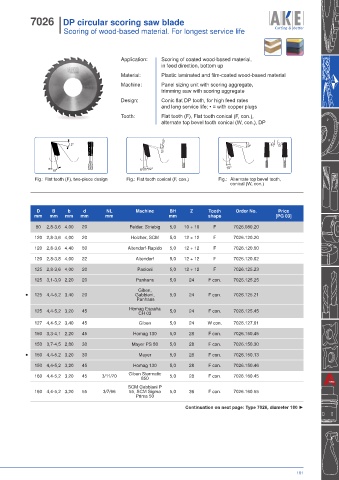

7026 I DP circular scoring saw blade
I Scoring of wood-based material. For longest service life

Application: Scoring of coated wood-based material,
in feed direction, bottom up
Material: Plastic laminated and film-coated wood-based material
Machine: Panel sizing unit with scoring aggregate,
trimming saw with scoring aggregate
Design: Conic flat DP tooth, for high feed rates
and long service life; • = with copper plugs
Tooth: Flat tooth (F), Flat tooth conical (F, con.),
alternate top bevel tooth conical (W, con.), DP

10°/12°/15° 12°
12° 5° 5°

10° 8°/10°/12° 10°
Fig.: Flat tooth (F), two-piece design Fig.: Flat tooth conical (F, con.) Fig.: Alternate top bevel tooth,
conical (W, con.)

D B b d NL Machine BH Z Tooth Order No. Price
mm mm mm mm mm mm shape [PG 03]
80 2,8-3,6 4,00 20 Felder, Striebig 5,0 10 + 10 F 7026.080.20
120 2,8-3,6 4,00 20 Holzher, SCM 5,0 12 + 12 F 7026.120.20

120 2,8-3,6 4,40 50 Altendorf-Rapido 5,0 12 + 12 F 7026.120.50
120 2,8-3,8 4,00 22 Altendorf 5,0 12 + 12 F 7026.120.02
125 2,8-3,6 4,00 20 Paoloni 5,0 12 + 12 F 7026.125.23

125 3,1-3,9 2,20 20 Panhans 5,0 24 F con. 7026.125.25
Giben,
• 125 4,4-5,2 3,40 20 Gabbiani, 5,0 24 F con. 7026.125.21
Panhans

125 4,4-5,2 3,20 45 Homag España 5,0 24 F con. 7026.125.45
CH 03
127 4,4-5,2 3,40 45 Giben 5,0 24 W con. 7026.127.01
150 3,3-4,1 2,20 45 Homag 130 5,0 28 F con. 7026.150.45

150 3,7-4,5 2,80 30 Mayer PS 80 5,0 28 F con. 7026.150.30
• 150 4,4-5,2 3,20 30 Mayer 5,0 28 F con. 7026.150.13
150 4,4-5,2 3,20 45 Homag 130 5,0 28 F con. 7026.150.46

160 4,4-5,2 3,20 45 3/11/70 Giben Starmatic 5,0 28 F con. 7026.160.45
850
SCM Gabbiani P
160 4,4-5,2 3,20 55 3/7/66 55, SCM Sigma 5,0 36 F con. 7026.160.55
Prima 50

Continuation on next page: Type 7026, diameter 180 ►
