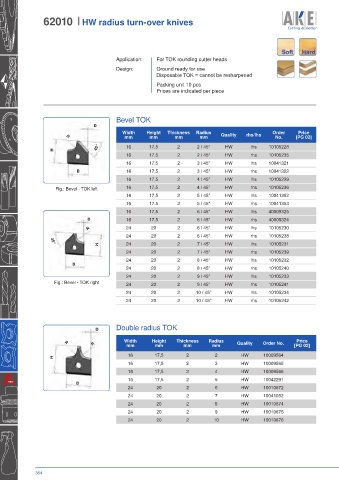

62010 I HW radius turn-over knives

Application: For TOK rounding cutter heads
Design: Ground ready for use
Disposable TOK = cannot be resharpened
Packing unit 10 pcs
Prices are indicated per piece

Bevel TOK
D
Width Height Thickness Radius Order Price
mm mm mm mm No. [PG 02]
R Quality rhs/lhs
45° 16 17,5 2 2 / 45° HW lhs 10105228
H
16 17,5 2 2 / 45° HW rhs 10105235
16 17,5 2 3 / 45° HW lhs 10041321
B 16 17,5 2 3 / 45° HW rhs 10041322
16 17,5 2 4 / 45° HW lhs 10105229
Fig.: Bevel - TOK left 16 17,5 2 4 / 45° HW rhs 10105236
16 17,5 2 5 / 45° HW lhs 10041352
16 17,5 2 5 / 45° HW rhs 10041353
16 17,5 2 6 / 45° HW lhs 40009325
D 16 17,5 2 6 / 45° HW rhs 40009324
R 24 20 2 6 / 45° HW lhs 10105230
24 20 2 6 / 45° HW rhs 10105238
45°
H 24 20 2 7 / 45° HW lhs 10105231
24 20 2 7 / 45° HW rhs 10105239
24 20 2 8 / 45° HW lhs 10105232
B
24 20 2 8 / 45° HW rhs 10105240
24 20 2 9 / 45° HW lhs 10105233
Fig.: Bevel - TOK right 24 20 2 9 / 45° HW rhs 10105241
24 20 2 10 / 45° HW lhs 10105234
24 20 2 10 / 45° HW rhs 10105242

Double radius TOK
D
Width Height Thickness Radius Price
R mm mm mm mm [PG 02]
R Quality Order No.
16 17,5 2 2 HW 10009564
H
16 17,5 2 3 HW 10009565
16 17,5 2 4 HW 10009566
16 17,5 2 5 HW 10042291
B
24 20 2 6 HW 10010672
24 20 2 7 HW 10041052
24 20 2 8 HW 10010674
24 20 2 9 HW 10010675
24 20 2 10 HW 10010676
