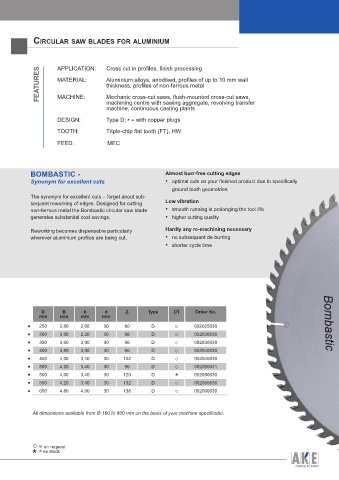

Page 3 - Bombastic_programme_EN

CirCular saw blades for aluminium

APPLICATION: Finish cut in homogenous material. APPLICATION: Cross cut in profiles, finish processing
Recommendation: use emulsion as a coolant. MATERIAL: Aluminium alloys, anodised, profiles of up to 10 mm wall

MATERIAL: (Thermoplastics) -> PC, PMMA FEATURES thickness, profiles of non-ferrous metal
MACHINE: Panel sizing machine MACHINE: Mechanic cross-cut saws, flush-mounted cross-cut saws,
machining centre with sawing aggregate, revolving transfer
DESIGN: Type A: Thermoplastics, thin-walled, machine, continuous casting plants
low tensile strength of max. 50-60 N/mm²
Type C: Thermoplastics, for stacks of material, DESIGN: Type D; • = with copper plugs
tensile strength > 50 N/mm²
TOOTH: Triple-chip flat tooth (FT), HW
TOOTH: Type A: ATB (WS) chamfered, HW
Type C: Triple-chip/triple-chip (TT), HW FEED: MEC

FEED: MEC

BOMBASTIC - Almost burr-free cutting edges
Synonym for excellent cuts • optimal cuts on your finished product due to specifically
ground tooth geometries
The synonym for excellent cuts – forget about sub-
sequent reworking of edges. Designed for cutting Low vibration
non-ferrous metal the Bombastic circular saw blade • smooth running is prolonging the tool life
generates substantial cost savings. • higher cutting quality

Reworking becomes dispensable particularly Hardly any re-machining necessary
wherever aluminium profiles are being cut. • no subsequent de-burring
• shorter cycle time

D B b d Z Type DT Order No.
mm mm mm mm
• 250 2,80 2,00 30 80 D ○ 002025030
• 300 3,00 2,20 30 96 D ○ 002030030
• 350 3,60 3,00 30 96 D ○ 002035030
• 400 3,80 3,00 30 96 D ○ 002040030
• 450 4,00 3,40 30 102 D ○ 002045030
• 500 4,20 3,40 30 96 D ○ 002050031
• 500 4,00 3,40 30 120 D * 002050030
• 550 4,20 3,40 30 132 D ○ 002055030
• 600 4,80 4,00 30 138 D ○ 002060030

All dimensions available from Ø 160 to 800 mm on the basis of your machine specificatio.

○ = on request
* = ex stock
