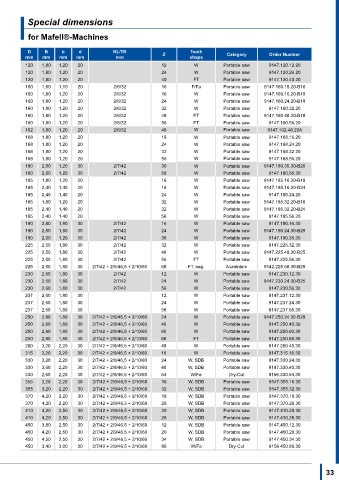

Page 33 - blueline Catalogue 2022+

Special dimensions

for Mafell®-Machines

D B b d NL/TK Tooth
mm mm mm mm mm Z shape Category Order Number
120 1,80 1,20 20 12 W Portable saw 9147.120.12.20
120 1,80 1,20 20 24 W Portable saw 9147.120.24.20
120 1,80 1,20 20 40 FT Portable saw 9147.120.40.20
160 1,60 1,10 20 2/6/32 16 F/Fa Portable saw 9147.160.16.20-B16
160 1,80 1,20 20 2/6/32 16 W Portable saw 9147.160.16.20-B18
160 1,80 1,20 20 2/6/32 24 W Portable saw 9147.160.24.20-B18
160 1,80 1,20 20 2/6/32 32 W Portable saw 9147.160.32.20
160 1,80 1,20 20 2/6/32 48 FT Portable saw 9147.160.48.20-B18
160 1,80 1,20 20 2/6/32 56 FT Portable saw 9147.160.56.20
162 1,80 1,20 20 2/6/32 48 W Portable saw 9147.162.48.20A
168 1,80 1,20 20 16 W Portable saw 9147.168.16.20
168 1,80 1,20 20 24 W Portable saw 9147.168.24.20
168 1,80 1,20 20 32 W Portable saw 9147.168.32.20
168 1,80 1,20 20 56 W Portable saw 9147.168.56.20
180 2,00 1,20 30 2/7/42 30 W Portable saw 9147.180.30.30-B20
180 2,00 1,20 30 2/7/42 56 W Portable saw 9147.180.56.30
185 1,80 1,20 20 16 W Portable saw 9147.185.16.20-B18
185 2,40 1,40 20 16 W Portable saw 9147.185.16.20-B24
185 2,40 1,40 20 24 W Portable saw 9147.185.24.20
185 1,80 1,20 20 32 W Portable saw 9147.185.32.20-B18
185 2,40 1,40 20 32 W Portable saw 9147.185.32.20-B24
185 2,40 1,40 20 56 W Portable saw 9147.185.56.20
190 2,80 1,80 30 2/7/42 16 W Portable saw 9147.190.16.30
190 2,50 1,80 30 2/7/42 24 W Portable saw 9147.190.24.30-B25
190 2,00 1,20 30 2/7/42 36 W Portable saw 9147.190.36.30
225 2,50 1,80 30 2/7/42 32 W Portable saw 9147.225.32.30
225 2,50 1,80 30 2/7/42 48 W Portable saw 9147.225.48.30-B25
225 2,50 1,80 30 2/7/42 56 FT Portable saw 9147.225.56.30
225 2,50 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 68 FT, neg. Aluminium 9142.225.68.30-B25
230 2,50 1,80 30 2/7/42 12 W Portable saw 9147.230.12.30
230 2,50 1,80 30 2/7/42 24 W Portable saw 9147.230.24.30-B25
230 2,60 1,80 30 2/7/42 56 W Portable saw 9147.230.56.30
237 2,50 1,80 30 12 W Portable saw 9147.237.12.30
237 2,50 1,80 30 24 W Portable saw 9147.237.24.30
237 2,50 1,80 30 56 W Portable saw 9147.237.56.30
250 2,80 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 24 W Portable saw 9147.250.24.30-B28
250 2,80 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 40 W Portable saw 9147.250.40.30
250 2,80 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 60 W Portable saw 9147.250.60.30
250 2,80 1,80 30 2/7/42 + 2/9/46,5 + 2/10/60 68 FT Portable saw 9147.250.68.30
280 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 48 W Portable saw 9147.280.48.30
315 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 16 W Portable saw 9147.315.16.30
330 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 24 W, SDB Portable saw 9147.330.24.30
330 3,60 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 40 W, SDB Portable saw 9147.330.40.30
330 2,60 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 54 W/Fa Dry-Cut 9156.330.54.30
355 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 16 W, SDB Portable saw 9147.355.16.30
355 3,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 32 W, SDB Portable saw 9147.355.32.30
370 4,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 18 W, SDB Portable saw 9147.370.18.30
370 4,20 2,20 30 2/7/42 + 2/9/46,5 + 2/10/60 26 W, SDB Portable saw 9147.370.26.30
410 4,20 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 20 W, SDB Portable saw 9147.410.20.30
410 4,20 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 28 W, SDB Portable saw 9147.410.28.30
450 3,80 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 12 W, SDB Portable saw 9147.450.12.30
450 4,20 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 20 W, SDB Portable saw 9147.450.20.30
450 4,50 2,50 30 2/7/42 + 2/9/46,5 + 2/10/60 34 W, SDB Portable saw 9147.450.34.30
450 3,40 3,00 30 2/7/42 + 2/9/46,5 + 2/10/60 86 W/Fa Dry-Cut 9156.450.86.30
