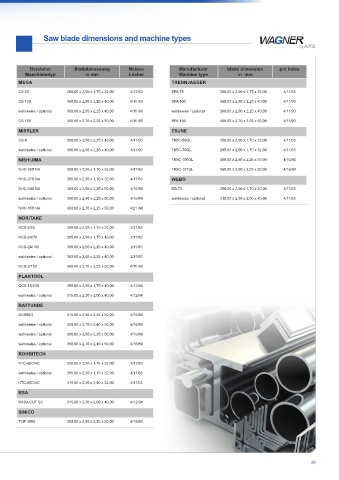

Saw blade dimensions and machine types
Hersteller Blattabmessung Neben- Manufacturer blade dimension pin holes
Maschinentyp in mm Löcher Machine type in mm
MEGA TRENNJAEGER
CS 65 280,00 x 2,00 x 1,75 x 32,00 4/12/63 SPA 75 280,00 x 2,00 x 1,75 x 32,00 4/11/63
CS 100 360,00 x 2,50 x 2,25 x 40,00 4/11 /90 SPA 100 360,00 x 2,50 x 2,25 x 40,00 4/11/90
wahlweise / optional 360,00 x 2,60 x 2,25 x 40,00 4/11 /90 wahlweise / optional 360,00 x 2,60 x 2,25 x 40,00 4/11/90
CS 150 460,00 x 2,70 x 2,25 x 50,00 4/11 /90 SPA 150 460,00 x 2,70 x 2,25 x 50,00 4/11/90
MISSLER TSUNE
CS 4 360,00 x 2,50 x 2,25 x 40,00 4/11/90 TK5C-50GL 250,00 x 2,00 x 1,70 x 32,00 4/11/63
wahlweise / optional 360,00 x 2,60 x 2,25 x 40,00 4/11/90 TK5C-70GL 285,00 x 2,00 x 1,70 x 32,00 4/11/63
NISHIJIMA TK5C-100GL 360,00 x 2,60 x 2,25 x 50,00 4/16/80
NHC-050 NA 250,00 x 2,00 x 1,70 x 32,00 4/11/63 TK5C-101GL 360,00 x 2,50 x 2,25 x 50,00 4/16/80
NHC-070 NA 285,00 x 2,00 x 1,70 x 32,00 4/11/63 WEBO
NHC-100 NA 360,00 x 2,50 x 2,25 x 50,00 4/16/80 DB-70 250,00 x 2,00 x 1,70 x 40,00 4/11/63
wahlweise / optional 360,00 x 2,60 x 2,25 x 50,00 4/16/80 wahlweise / optional 315,00 x 2,30 x 2,00 x 40,00 4/11/63
NHC-150 NA 460,00 x 2,70 x 2,25 x 50,00 4/21 /90
NORITAKE
NCS-2/50 240,00 x 2,00 x 1,75 x 32,00 2/11/63
NCS-2A/70 285,00 x 2,00 x 1,75 x 40,00 2/11/80
NCS-2A/100 360,00 x 2,50 x 2,25 x 40,00 2/11/80
wahlweise / optional 360.00 x 2,60 x 2,25 x 40,00 2/11/80
NCS-2/150 460,00 x 2,70 x 2,25 x 50,00 4/11 /90
PLANTOOL
QCS 15/210 250,00 x 2,00 x 1,75 x 40,00 4/12/64
wahlweise / optional 315,00 x 2,30 x 2,00 x 40,00 4/12/64
RATTUNDE
ACS90/2 315,00 x 2,50 x 2,25 x 50,00 4/16/80
wahlweise / optional 350,00 x 2,70 x 2,40 x 50,00 4/16/80
wahlweise / optional 360,00 x 2,50 x 2,25 x 50,00 4/16/80
wahlweise / optional 360,00 x 2,70 x 2,40 x 50,00 4/16/80
ROHBITECH
KTC-65CNC 250,00 x 2,00 x 1,75 x 32,00 4/11/63
wahlweise / optional 285,00 x 2,00 x 1,75 x 32,00 4/11/63
KTC-85CNC 315,00 x 2,30 x 2,00 x 32,00 4/11/63
RSA
RASA CUT SC 315,00 x 2,30 x 2,00 x 40,00 4/12/64
SINICO
TOP 2000 360,00 x 2,60 x 2,25 x 50,00 4/16/80
