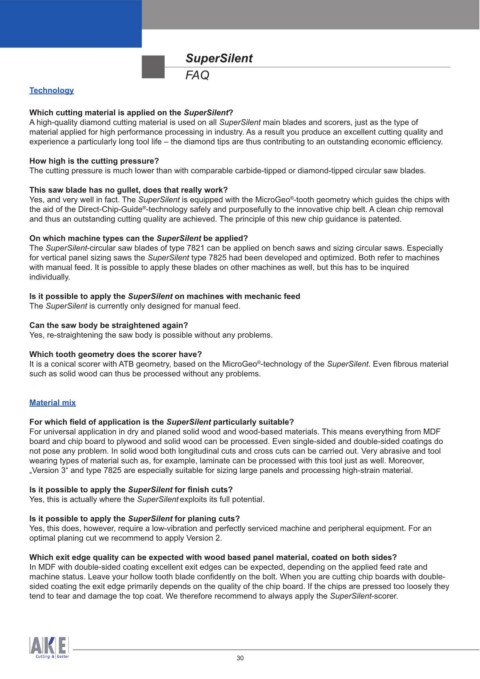

Page 30 - SuperSilent_Broschüre_EN

SuperSilent
FAQ

Technology

Which cutting material is applied on the SuperSilent?
A high-quality diamond cutting material is used on all SuperSilent main blades and scorers, just as the type of
material applied for high performance processing in industry. As a result you produce an excellent cutting quality and
experience a particularly long tool life – the diamond tips are thus contributing to an outstanding economic efficiency.

How high is the cutting pressure?
The cutting pressure is much lower than with comparable carbide-tipped or diamond-tipped circular saw blades.
This saw blade has no gullet, does that really work?
®
Yes, and very well in fact. The SuperSilent is equipped with the MicroGeo -tooth geometry which guides the chips with
®
the aid of the Direct-Chip-Guide -technology safely and purposefully to the innovative chip belt. A clean chip removal
and thus an outstanding cutting quality are achieved. The principle of this new chip guidance is patented.
On which machine types can the SuperSilent be applied?
The SuperSilent-circular saw blades of type 7821 can be applied on bench saws and sizing circular saws. Especially
for vertical panel sizing saws the SuperSilent type 7825 had been developed and optimized. Both refer to machines
with manual feed. It is possible to apply these blades on other machines as well, but this has to be inquired
individually.

Is it possible to apply the SuperSilent on machines with mechanic feed
The SuperSilent is currently only designed for manual feed.

Can the saw body be straightened again?
Yes, re-straightening the saw body is possible without any problems.

Which tooth geometry does the scorer have?
It is a conical scorer with ATB geometry, based on the MicroGeo -technology of the SuperSilent. Even fibrous material
®
such as solid wood can thus be processed without any problems.

Material mix
For which field of application is the SuperSilent particularly suitable?
For universal application in dry and planed solid wood and wood-based materials. This means everything from MDF
board and chip board to plywood and solid wood can be processed. Even single-sided and double-sided coatings do
not pose any problem. In solid wood both longitudinal cuts and cross cuts can be carried out. Very abrasive and tool
wearing types of material such as, for example, laminate can be processed with this tool just as well. Moreover,
„Version 3“ and type 7825 are especially suitable for sizing large panels and processing high-strain material.

Is it possible to apply the SuperSilent for finish cuts?

Yes, this is actually where the SuperSilent exploits its full potential.
Is it possible to apply the SuperSilent for planing cuts?
Yes, this does, however, require a low-vibration and perfectly serviced machine and peripheral equipment. For an
optimal planing cut we recommend to apply Version 2.

Which exit edge quality can be expected with wood based panel material, coated on both sides?
In MDF with double-sided coating excellent exit edges can be expected, depending on the applied feed rate and
machine status. Leave your hollow tooth blade confidently on the bolt. When you are cutting chip boards with double-
sided coating the exit edge primarily depends on the quality of the chip board. If the chips are pressed too loosely they
tend to tear and damage the top coat. We therefore recommend to always apply the SuperSilent-scorer.

30
