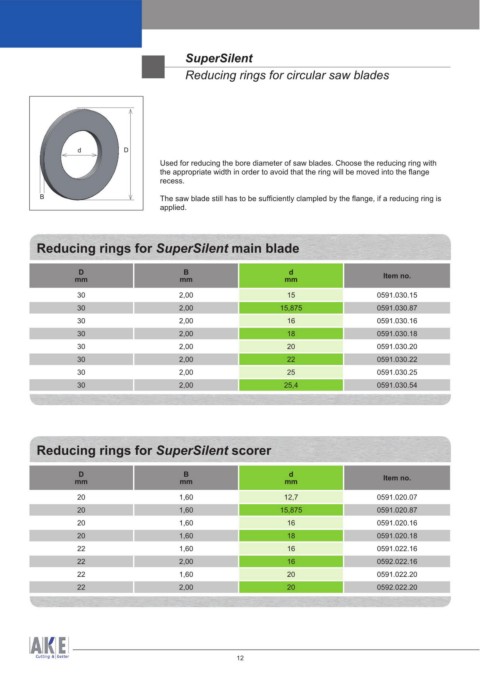

Page 12 - SuperSilent_Broschüre_EN

SuperSilent
Reducing rings for circular saw blades

d D
Used for reducing the bore diameter of saw blades. Choose the reducing ring with
the appropriate width in order to avoid that the ring will be moved into the flange
recess.

B The saw blade still has to be sufficiently clampled by the flange, if a reducing ring is
applied.

Reducing rings for SuperSilent main blade

D B d
mm mm mm Item no.

30 2,00 15 0591.030.15
30 2,00 15,875 0591.030.87
30 2,00 16 0591.030.16
30 2,00 18 0591.030.18
30 2,00 20 0591.030.20
30 2,00 22 0591.030.22
30 2,00 25 0591.030.25
30 2,00 25,4 0591.030.54

Reducing rings for SuperSilent scorer

D B d
mm mm mm Item no.
20 1,60 12,7 0591.020.07
20 1,60 15,875 0591.020.87
20 1,60 16 0591.020.16
20 1,60 18 0591.020.18
22 1,60 16 0591.022.16
22 2,00 16 0592.022.16
22 1,60 20 0591.022.20
22 2,00 20 0592.022.20
