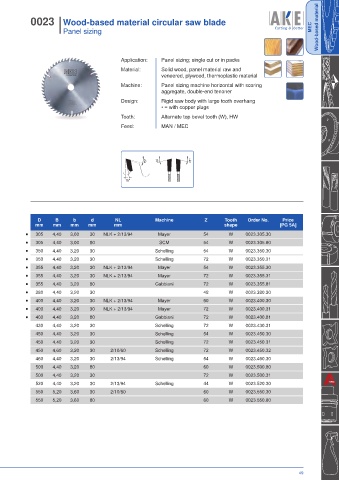

Page 53 - Catalogue_2025+

Wood-based material MEC

0023 I Wood-based material circular saw blade
I Panel sizing

Application: Panel sizing; single cut or in packs
Material: Solid wood, panel material raw and
veneered, plywood, thermoplastic material
Machine: Panel sizing machine horizontal with scoring
aggregate, double-end tenoner
Design: Rigid saw body with large tooth overhang
• = with copper plugs
Tooth: Alternate top bevel tooth (W), HW
Feed: MAN / MEC

15° 10° 10°

15°

D B b d NL Machine Z Tooth Order No. Price
mm mm mm mm mm shape [PG 5A]
• 305 4,40 3,00 30 NLK + 2/13/94 Mayer 54 W 0023.305.30
• 305 4,40 3,00 80 SCM 54 W 0023.305.80
• 350 4,40 3,20 30 Schelling 54 W 0023.350.30
• 350 4,40 3,20 30 Schelling 72 W 0023.350.31
• 355 4,40 3,20 30 NLK + 2/13/94 Mayer 54 W 0023.355.30
• 355 4,40 3,20 30 NLK + 2/13/94 Mayer 72 W 0023.355.31
• 355 4,40 3,20 80 Gabbiani 72 W 0023.355.81
• 380 4,40 3,20 30 48 W 0023.380.30
• 400 4,40 3,20 30 NLK + 2/13/94 Mayer 60 W 0023.400.30
• 400 4,40 3,20 30 NLK + 2/13/94 Mayer 72 W 0023.400.31
• 400 4,40 3,20 80 Gabbiani 72 W 0023.400.81

430 4,40 3,20 30 Schelling 72 W 0023.430.31
450 4,40 3,20 30 Schelling 54 W 0023.450.30
450 4,40 3,20 30 Schelling 72 W 0023.450.31
450 4,60 3,20 30 2/10/60 Schelling 72 W 0023.450.32
460 4,40 3,20 30 2/13/94 Schelling 54 W 0023.460.30
500 4,40 3,20 80 60 W 0023.500.80
500 4,40 3,20 30 72 W 0023.500.31
520 4,40 3,20 30 2/13/94 Schelling 44 W 0023.520.30
550 5,20 3,60 30 2/10/80 60 W 0023.550.30
550 5,20 3,60 80 60 W 0023.550.80

49
