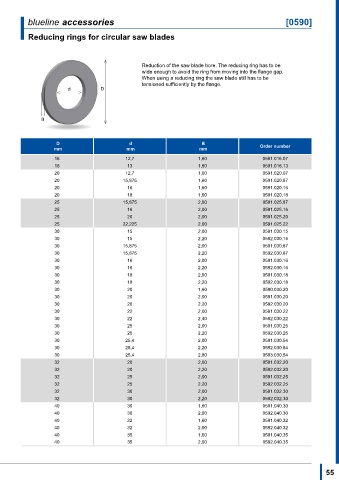

blueline accessories [0590]

Reducing rings for circular saw blades

Reduction of the saw blade bore. The reducing ring has to be
wide enough to avoid the ring from moving into the flange gap.
When using a reducing ring the saw blade still has to be
tensioned sufficiently by the flange.
d D

B

D d B
mm mm mm Order number
16 12,7 1,60 0591.016.07
16 13 1,60 0591.016.13
20 12,7 1,60 0591.020.07
20 15,875 1,60 0591.020.87
20 16 1,60 0591.020.16
20 18 1,60 0591.020.18
25 15,875 2,00 0591.025.87
25 16 2,00 0591.025.16
25 20 2,00 0591.025.20
25 22,225 2,00 0591.025.22
30 15 2,00 0591.030.15
30 15 2,20 0592.030.15
30 15,875 2,00 0591.030.87
30 15,875 2,20 0592.030.87
30 16 2,00 0591.030.16
30 16 2,20 0592.030.16
30 18 2,00 0591.030.18
30 18 2,20 0592.030.18
30 20 1,60 0590.030.20
30 20 2,00 0591.030.20
30 20 2,20 0592.030.20
30 22 2,00 0591.030.22
30 22 2,40 0592.030.22
30 25 2,00 0591.030.25
30 25 2,20 0592.030.25
30 25,4 2,00 0591.030.54
30 25,4 2,20 0592.030.54
30 25,4 2,80 0593.030.54
32 20 2,00 0591.032.20
32 20 2,20 0592.032.20
32 25 2,00 0591.032.25
32 25 2,20 0592.032.25
32 30 2,00 0591.032.30
32 30 2,20 0592.032.30
40 30 1,60 0591.040.30
40 30 2,00 0592.040.30
40 32 1,60 0591.040.32
40 32 2,00 0592.040.32
40 35 1,60 0591.040.35
40 35 2,00 0592.040.35
