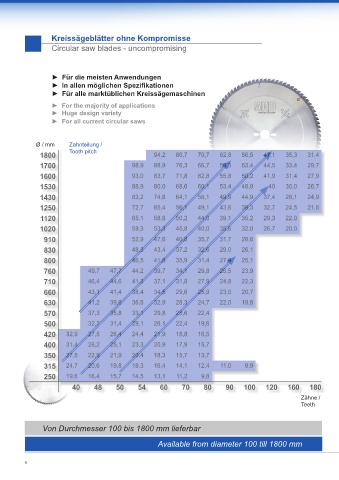

Page 6 - Aluminium 2017+ DE+EN
P. 6
Kreissägeblätter ohne Kompromisse
Circular saw blades - uncompromising
► Für die meisten Anwendungen
► In allen möglichen Spezifikationen
► Für alle marktüblichen Kreissägemaschinen
► For the majority of applications
► Huge design variety
► For all current circular saws
Ø / mm Zahnteilung /
1800 Tooth pitch 94,2 80,7 70,7 62,8 56,5 47,1 35,3 31,4
1700 98,9 88,9 76,3 66,7 59,3 53,4 44,5 33,4 29,7
1600 93,0 83,7 71,8 62,8 55,8 50,2 41,9 31,4 27,9
1530 88,9 80,0 68,6 60,1 53,4 48,0 40 30,0 26,7
1430 83,2 74,8 64,1 56,1 49,9 44,9 37,4 28,1 24,9
1250 72,7 65,4 56,1 49,1 43,6 39,3 32,7 24,5 21,8
1120 65,1 58,6 50,2 44,0 39,1 35,2 29,3 22,0
1020 59,3 53,3 45,8 40,0 35,6 32,0 26,7 20,0
910 52,9 47,6 40,8 35,7 31,7 28,6
830 48,3 43,4 37,2 32,6 29,0 26,1
800 46,5 41,8 35,9 31,4 27,9 25,1
760 49,7 47,7 44,2 39,7 34,1 29,8 26,5 23,9
710 46,4 44,6 41,3 37,1 31,8 27,9 24,8 22,3
660 43,1 41,4 38,4 34,5 29,6 25,9 23,0 20,7
630 41,2 39,6 36,6 32,9 28,3 24,7 22,0 19,8
570 37,3 35,8 33,1 29,8 25,6 22,4
500 32,7 31,4 29,1 26,1 22,4 19,6
420 32,9 27,5 26,4 24,4 21,9 18,8 16,5
400 31,4 26,2 25,1 23,3 20,9 17,9 15,7
350 27,5 22,9 21,9 20,4 18,3 15,7 13,7
315 24,7 20,6 19,8 18,3 16,4 14,1 12,4 11,0 9,9
250 19,6 16,4 15,7 14,5 13,1 11,2 9,8
40 48 50 54 60 70 80 90 100 120 160 180
Zähne /
Teeth
Von Durchmesser 100 bis 1800 mm lieferbar
Available from diameter 100 till 1800 mm
