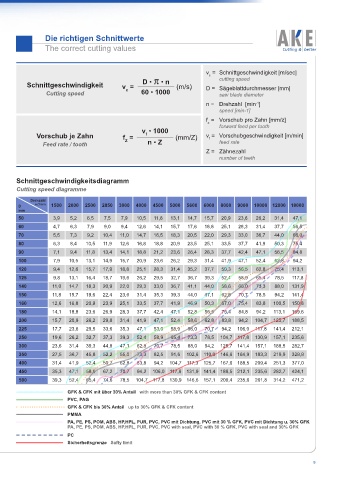

Die richtigen Schnittwerte
The correct cutting values
v = Schnittgeschwindigkeit [m/sec]
c
cutting speed
Schnittgeschwindigkeit v = D • π • n (m/s) D = Sägeblattdurchmesser [mm]
Cutting speed c 60 • 1000 saw blade diameter
n = Drehzahl [min ]
-1
speed [min-1]
f = Vorschub pro Zahn [mm/z]
z
forward feed per tooth
v • 1000
Vorschub je Zahn f = f (mm/Z) v = Vorschubgeschwindigkeit [m/min]
f
Feed rate / tooth Z n • Z feed rate
Z = Zähnezahl
number of teeth
Schnittgeschwindigkeitsdiagramm
Cutting speed diagramme
Drehzahl
D n ( 1 /min 1500 2000 2500 2850 3000 4000 4500 5000 5600 6000 8000 9000 10000 12000 18000
mm
50 3,9 5,2 6,5 7,5 7,9 10,5 11,8 13,1 14,7 15,7 20,9 23,6 26,2 31,4 47,1
60 4,7 6,3 7,9 9,0 9,4 12,6 14,1 15,7 17,6 18,8 25,1 28,3 31,4 37,7 56,5
70 5,5 7,3 9,2 10,4 11,0 14,7 16,5 18,3 20,5 22,0 29,3 33,0 36,7 44,0 66,0
80 6,3 8,4 10,5 11,9 12,6 16,8 18,8 20,9 23,5 25,1 33,5 37,7 41,9 50,3 75,4
90 7,1 9,4 11,8 13,4 14,1 18,8 21,2 23,6 26,4 28,3 37,7 42,4 47,1 56,5 84,8
100 7,9 10,5 13,1 14,9 15,7 20,9 23,6 26,2 29,3 31,4 41,9 47,1 52,4 62,8 94,2
120 9,4 12,6 15,7 17,9 18,8 25,1 28,3 31,4 35,2 37,7 50,3 56,5 62,8 75,4 113,1
125 9,8 13,1 16,4 18,7 19,6 26,2 29,5 32,7 36,7 39,3 52,4 58,9 65,4 78,5 117,8
140 11,0 14,7 18,3 20,9 22,0 29,3 33,0 36,7 41,1 44,0 58,6 66,0 73,3 88,0 131,9
150 11,8 15,7 19,6 22,4 23,6 31,4 35,3 39,3 44,0 47,1 62,8 70,7 78,5 94,2 141,4
160 12,6 16,8 20,9 23,9 25,1 33,5 37,7 41,9 46,9 50,3 67,0 75,4 83,8 100,5 150,8
180 14,1 18,8 23,6 26,9 28,3 37,7 42,4 47,1 52,8 56,5 75,4 84,8 94,2 113,1 169,6
200 15,7 20,9 26,2 29,8 31,4 41,9 47,1 52,4 58,6 62,8 83,8 94,2 104,7 125,7 188,5
225 17,7 23,6 29,5 33,6 35,3 47,1 53,0 58,9 66,0 70,7 94,2 106,0 117,8 141,4 212,1
250 19,6 26,2 32,7 37,3 39,3 52,4 58,9 65,4 73,3 78,5 104,7 117,8 130,9 157,1 235,6
300 23,6 31,4 39,3 44,8 47,1 62,8 70,7 78,5 88,0 94,2 125,7 141,4 157,1 188,5 282,7
350 27,5 36,7 45,8 52,2 55,0 73,3 82,5 91,6 102,6 110,0 146,6 164,9 183,3 219,9 329,9
400 31,4 41,9 52,4 59,7 62,8 83,8 94,2 104,7 117,3 125,7 167,6 188,5 209,4 251,3 377,0
450 35,3 47,1 58,9 67,2 70,7 94,2 106,0 117,8 131,9 141,4 188,5 212,1 235,6 282,7 424,1
500 39,3 52,4 65,4 74,6 78,5 104,7 117,8 130,9 146,6 157,1 209,4 235,6 261,8 314,2 471,2
GFK & CFK mit über 30% Anteil with more than 30% GFK & CFK content
PVC, PAG
GFK & CFK bis 30% Anteil up to 30% GFK & CFK content
PMMA
PA, PE, PS, POM, ABS, HP,HPL, PUR, PVC, PVC mit Dichtung, PVC mit 30 % GFK, PVC mit Dichtung u. 30% GFK
PA, PE, PS, POM, ABS, HP,HPL, PUR, PVC, PVC with seal, PVC with 30 % GFK, PVC with seal and 30% GFK
PC
Sicherheitsgrenze Safty limit
